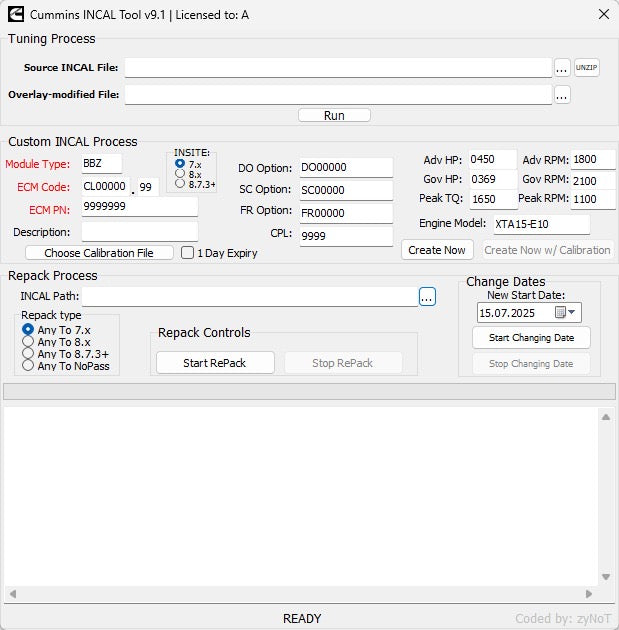

Cummins INCAL Tool v9.1 — Advanced INCAL Conversion, Repack & Calibration Control Suite

Cummins INCAL Tool v9.1 is the newest generation utility for modifying, converting, rebuilding and unlocking INCAL calibration files used in Cummins INSITE (7.x, 8.x, 8.7.x / 8.7.3+). This 2025 release adds deeper ECM parameter control, enhanced BBZ/CL compatibility, full NoPass repack, start-date editing, and an optimized workflow for both stock and Calterm-modified calibrations.

INCAL Tool v9.1 provides complete management of CAL ⇄ INCAL conversions, legacy/new repack operations, and creation of custom calibration containers compatible with all modern Cummins ECM families.

Main Features

• CAL ⇄ INCAL full bidirectional conversion
• Modified CAL → INCAL for programming custom calibrations created in Calterm
• Repack new INCAL files for older INSITE versions (7.6.x)
• Repack older INCAL files to work with INSITE 8.x / 8.7.x / 8.7.3+
• Any-to-NoPass: remove all passwords from INCAL
• Change INCAL start dates to bypass expiration
• Build custom INCALs with adjustable metadata (ECM Code, ECM PN, CPL, DO/SC/FR options)
• Advanced parameter fields: Adv HP, Gov HP, Gov RPM, Peak TQ, Peak RPM, etc.
• Enhanced compatibility for BBZ module type and XTA15-E10 calibrations

NEW — Full Calterm Integration Workflow

Cummins INCAL Tool v9.1 is engineered to work seamlessly with Calterm III / Calterm 5, enabling technicians and tuners to convert modified CAL files into valid INCAL discs ready for programming via INSITE.

How INCAL Tool v9.1 Works With Calterm

• 1. Open & modify a CAL file in Calterm
  Perform adjustments to torque tables, HP limits, fuel maps, VGT control, speed governors, derates, limiters, or any internal ECM parameter.
• 2. Save the edited CAL
  Calterm exports the calibration as a modified CAL file.
• 3. Convert CAL → INCAL using INCAL Tool v9.1
  INCAL Tool injects your modified calibration into a valid INCAL structure accepted by INSITE, with all metadata rebuilt:
  • ECM Code, ECM PN, CPL
  • ECM family compatibility
  • INSITE version compatibility flags
  • Security fields and checksum structures
• 4. Repack for your specific INSITE version
  INCAL Tool v9.1 can convert your modified INCAL to:
  • INSITE 7.x
  • INSITE 8.x
  • INSITE 8.7.x and 8.7.3+
  • NoPass mode (removes passwords entirely)
• 5. Adjust the INCAL start date
  Ensure the INCAL is recognized as “current” by INSITE even if the original disc is expired.
• 6. Program the modified calibration via INSITE
  INSITE accepts the repacked INCAL as an official calibration container.

This makes INCAL Tool v9.1 a critical bridge between Calterm (modification) and INSITE (ECM programming).

Supported INSITE Versions

• INSITE 7.x.x
• INSITE 8.x.x
• INSITE 8.7.x / 8.7.3+
• INSITE 8.8 & future-compatible layouts

Software Information

Supported ECM Families

• CM870 / CM871 / CM872
• CM2150 / CM2250 / CM2350
• CM2880 / CM900 Series
• Heavy-Duty, Mid-Range & Industrial ECMs
• BBZ, CL, and high-compatibility calibration groups

Installation & Support

Payment & Refund Policy

Note:
INCAL Tool v9.1 does not replace INSITE or Calterm; it connects both systems. Calterm performs the internal calibration editing, while INCAL Tool v9.1 converts and rebuilds the calibration into an INSITE-compatible INCAL container for ECM programming.
